| Capacity | |
| Max. lifting capacity | 5 t |
|---|---|
| Dimensions | |
| Overall length | 11560 mm |
| Overall width | 2500 mm |
| Overall height | 3728 mm |
| Axles | 2 |
| Axle distance-1,2 | 5600 mm |
| Weight | |
| Overall weight | 20500 kg |
| Front axle load | 7500 Kg |
| Rear axle load | 13000 Kg |
| Engine | |
| Model | WeiChai |
| Rated power | 213kw/2200rpm |
| Rated torque | 1160N.m/1200-1600rpm |
| Emission standard | Euro III |
| Traveling | |
| Max. traveling speed | 92 km/h |
| Approach angle | 200 |
| Departure angle | 130 |
| Max. gradeability | 30 % |
| Main Performance | |
| Rated lifting moment | 12.5mt |
| Rated lifting capacity | 5000kg(2.3m) |
| Max.outreach | 11.6m |
| Max.lines of hook | 4 |
| Slewing angle(continuous) | continuous |
| Boom raising angle | 0~750 |
| Max.lifting height(the measurement from the ground after the outriggers fully extended) | 13.6 m |
| Length of the basic boom | 4.2 m |
| Length of fully extended boom | 11.9 m |
| Boom sections | 4 |
| Outrigger span (fully extended) | 5.1 m |
| Recommended volum for the system | 55L/min |
| Operating pressure | 23/25Mpa |
| Oil tank capacity | 100 L |
| Crane moment (dynamic) | 168.6kNm (17.2mt) |
| Torsional moment (dynamic) | 13.1kNm (1.3mt) |
| Aircondition | |
| HVAC in low cab | Cooling / Heating |
The parameters are for reference only, please contact your sales representative for details.
5-ton Lift Capacity Truck-mounted crane with Telescopic Boom-SPS12500/SHACMAN chassis | SANY
Camamach is the leading distributor of equipment and machinery. Our products vary from company to company, being that we source from not only leading global companies but also small companies and individuals. Among the products we specialize in are small truck-mounted cranes such as the 5-ton Lift Capacity Truck-mounted crane with Telescopic Boom-SPS12500/SHACMAN chassis | SANY. Features of this mounted crane truck that make it one of the best in the market include:
High tensile strength
This specific truck-mounted crane has high tensile strength extension booms to optimize the lifting height and the working range. It is the best lift-to-weight ratio in the industry. It is fitted with a wide outrigger span that ensures the best stability in all mounting situations. The standard package for the mounted crane track includes two working lights to ensure safe operation, day and night.
Competency and cost-effective
The 5-ton Lift Capacity Truck-mounted crane is equipped with an integrated oil reservoir for a quick, simple, and cost-efficient installation. It is also equipped with a lower seat control that is optionally available for convenient crane operation. An overload protection system is also optionally available to ensure safe crane operation and a Safety Package as well.
The 5-ton lift capacity crane engine model is WeiChai of 213kw/2200rpm Rated Power, 1160N.m/1200-1600rpm Rated Torque and an Emission Standard of Euro III. This is one of the best engines in the world in terms of fuel efficiency and output.
High productivity
The overall weight of this truck-mounted crane is 20500 kg with a front axle load of 7500 kg and a rear axle load of 13000 kilograms. This makes the 5-ton Lift Capacity Truck-mounted crane a highly productive truck-mounted crane for sale.
This truck-mounted crane for sale is a product of SANY Palfinger whose products are of the highest quality according to European Quality Standards. This ensures the best reliability, performance, and safety in the industry.
Affordable quality spare parts for this Crane mounted truck for sale are also readily available in the market. Truck-mounted crane prices vary depending on the company sourced from, ton weight lift, and telescopic boom. Get the 5-ton Lift Capacity Truck-mounted crane, and many more small truck-mounted cranes at Camamach for all your lifting needs.
Why you should buy SANY SPS12500 Truck-mounted Crane?
The SANY SPS12500 Truck-mounted Crane is one of the most reliable Truck-mounted Crane available on the market for Construction projects. Because the Truck-mounted Crane is highly efficient, this machine is very commonly used on Construction sites. In addition, the Truck-mounted Crane is easy to maintain, which sets this Truck-mounted Crane to stand out from the other models! Lastly, because of YTO’s intensive research, the Truck-mounted Crane is very safe for the operator, making the SANY SPS12500 Truck-mounted Crane one of the best Lifting machinery you can buy!
-

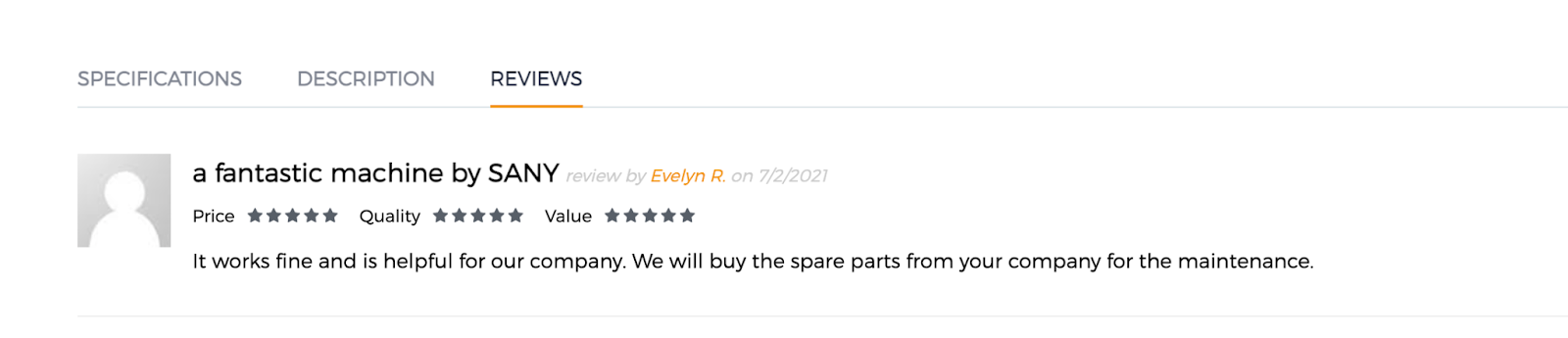

a fantastic machine by SANY review by Evelyn R. on 7/2/2021It works fine and is helpful for our company. We will buy the spare parts from your company for the maintenance.
